10 x 13 ft Rectangle Polaris Cantilever by Shademaker
The Polaris is the true definition of form and function. This elegant and robust side post umbrella provides larger size ranges. With its infinite tilt functionality, sophisticated styling, and superb construction, the Polaris is one of our most popular models.
- Simple to operate infinite front to back tilt system
- 360° rotation with 8 locking positions.

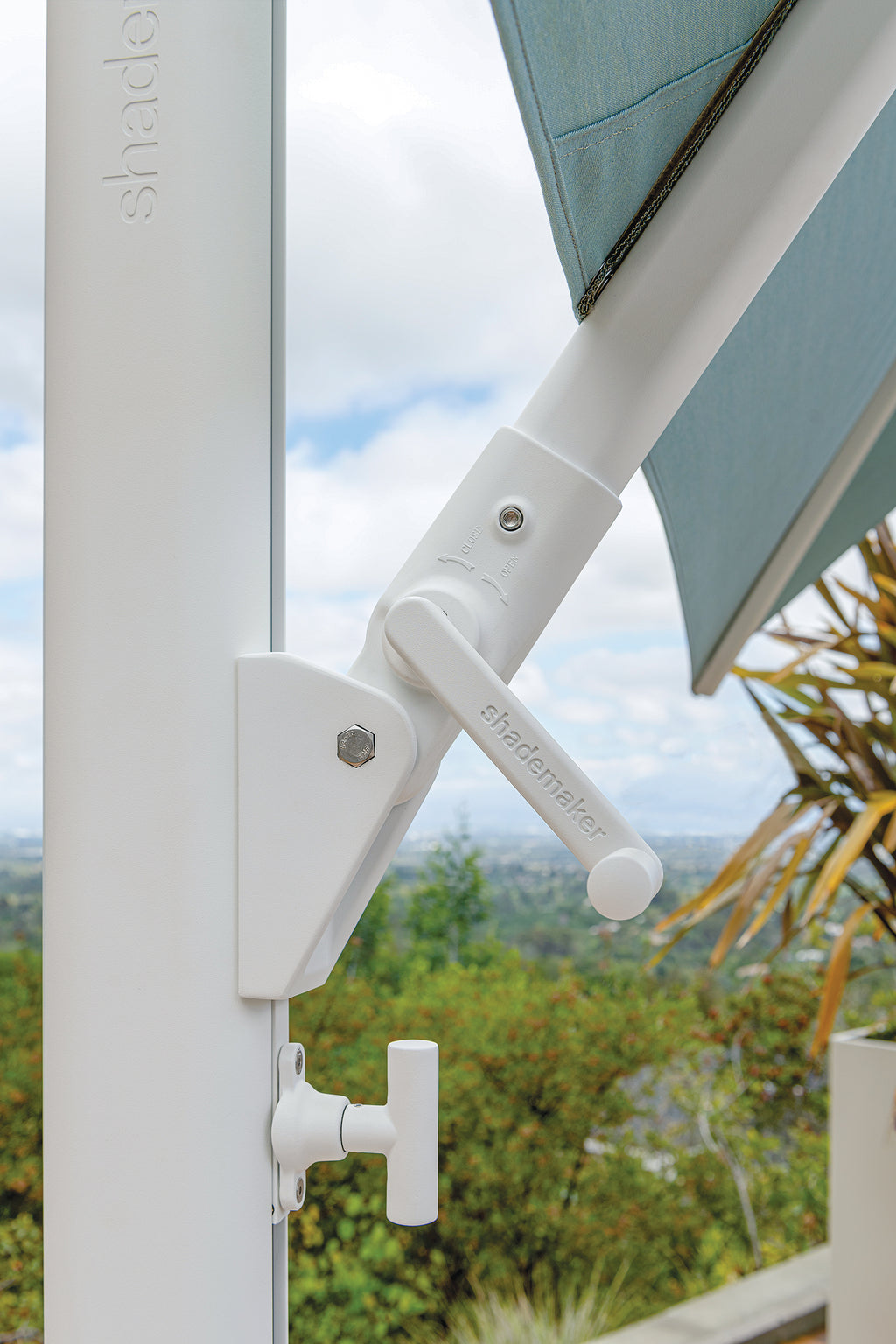

- Removable crank handle

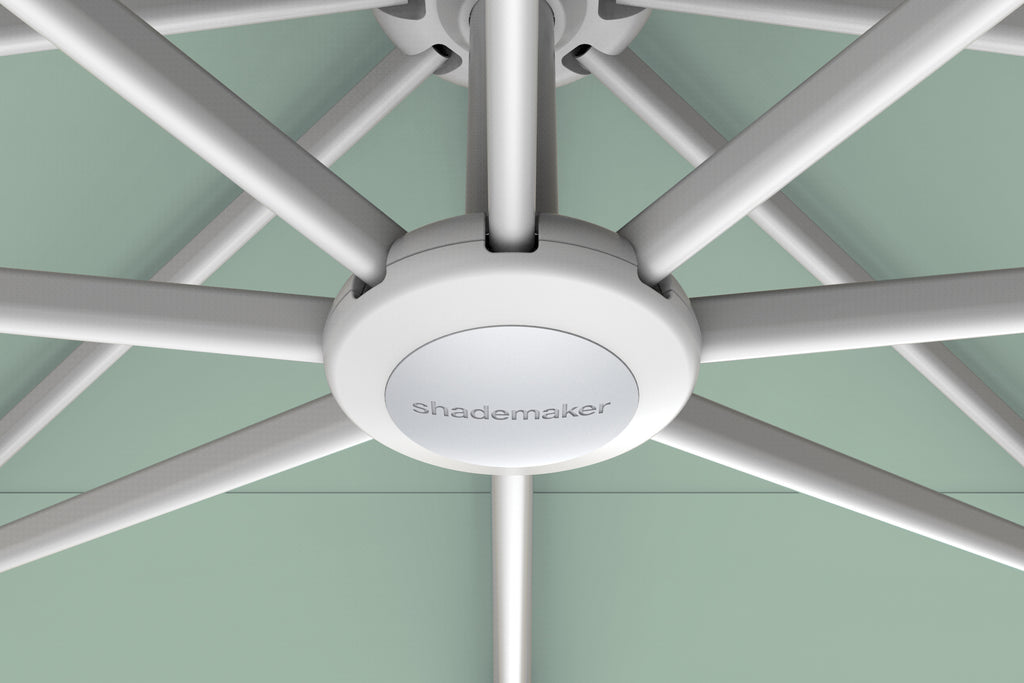

- Modernly designed aluminum hub and fittings
- Commercial grade canopy fasteners adding durability and design
- Galvanized internal mast stem
- Includes aluminum mast stem cover
- Includes high performance protective cover
- Coverage : 130 sq ft

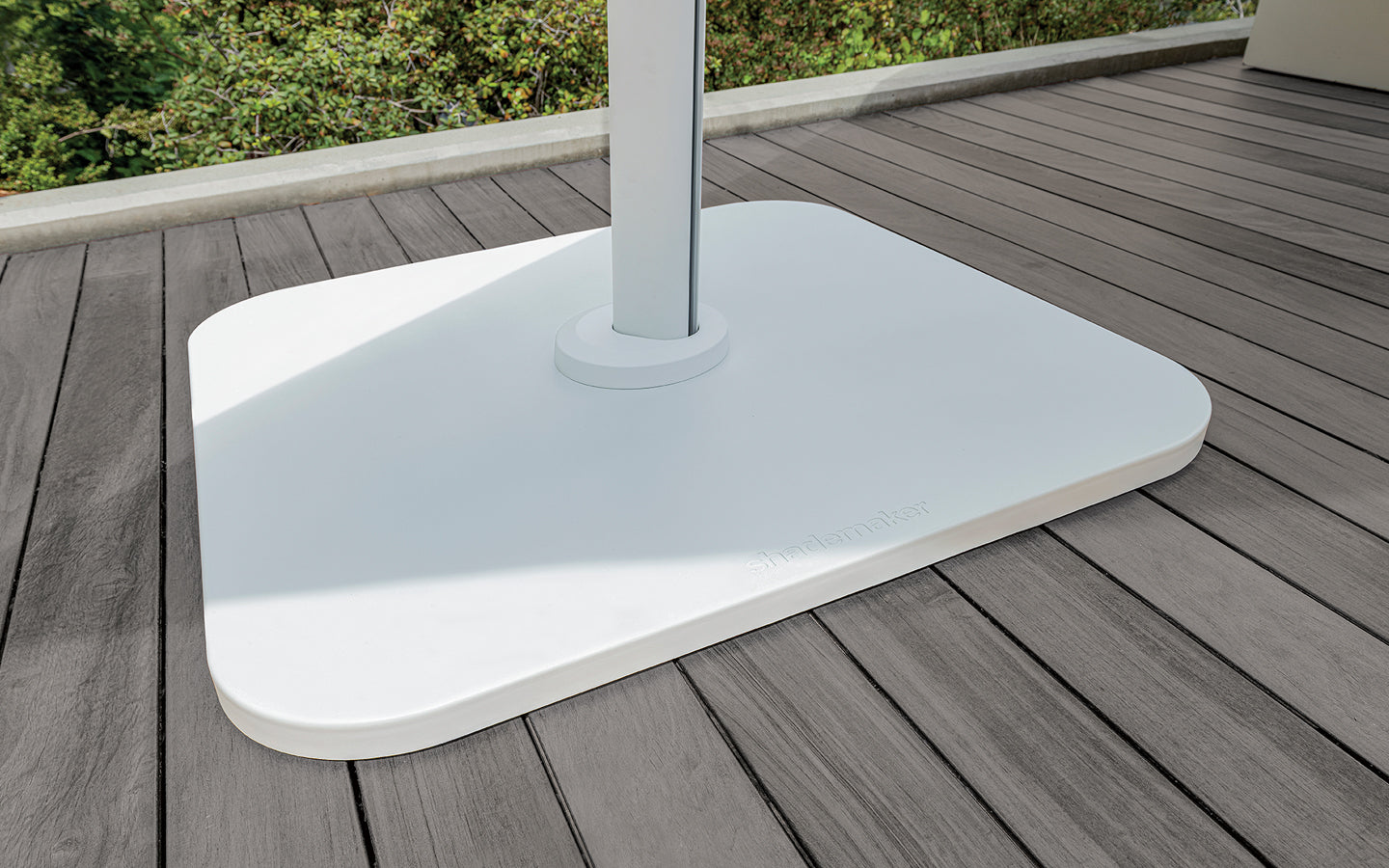

- NOTE: Recommended minimum weight requirements for free-standing applications. *550 lbs or Permanent mount recommended.
Shademaker is proud to introduce a fully modern and elevated redesign of the entire collection. Keeping our signature profiles and incorporating enhanced materials and timeless design, we have crafted the next generation of Shademaker umbrellas.
Dimensions:
A Lower Hub HEIGHT(Open) 7’ 10” ft | 2.4 m
B Rib End HEIGHT(Open) 7’ 7” ft | 2.3 m
C Canopy LENGTH(Diagonal) 16’ 5” ft | 5.0 m
D Canopy WIDTH 13’ 1” ft | 4.0 m
E HEIGHT to Mast Top 9’ 6” ft | 2.9 m
F HEIGHT to Canopy Top (Closed) 9’ 7” ft | 2.9 m
G HEIGHT to Rib End (Max Tilt) 13’ 7” ft | 4.1 m
H Rib End HEIGHT(Closed) 1’ 5” ft | 0.4 m
I Mast End to Canopy Edge(Closed) 1’ 5” ft | 0.4 m
J Mast End to Canopy Edge(Open) 11’ 3” ft | 3.4 m
K HEIGHT to Canopy Top (Open) 9’ 7” ft | 2.9 m
L HEIGHT to Crank Handle (Max Tilt) 3’ 9” ft | 1.1 m
M HEIGHT to Turning Handle 1’ 10” ft | 0.6 m
N Turning Handle WIDTH 6” ft | 0.2 m
